[1] When performing plastic molding, it is recommended to work around the specific softening point of the plastic material.
- Working above the softening point can result in degradation of the mechanical properties of the plastic and weakening of the fastening strength after molding.
- In cases where conventional heat-staking machines are used, the molded plastic rivets may lack luster and exhibit burrs around the edges. However, when using Heaterbong, the results show shiny appearance and the absence of burrs.
Conventional heat-staking machine
[2] Preheating unnecessary
- With PID control, HeaterbongⓇ completes the preheating and stabilization process within 5 minutes after power input.
- In contrast, traditional heat-staking machines typically require a preheating and stabilization time of 30 minutes or more.
[3] Simple structure and minimization of power consumption

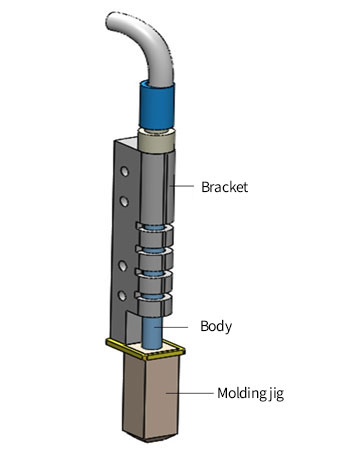

- Unlike conventional heat-staking machines that use heating blocks, which require insulation materials and cooling nozzles, Heaterbong utilizes a concentrated heating method on the molding jig, resulting in minimal heat loss to the surroundings and reducing power consumption. It can be directly mounted on the fixture using brackets.
- With HeaterbongⓇ, if the molding jig is at 200°C, the temperature of the bracket is around 50°C, allowing for maintenance even during the heating process.
